Textile Moisture Meter DHT-3

Multi function moisture meter to determine the residual moisture of yarn bobbins, fabric rolls, cotton bales, fiber flocks etc., optional to measure room temperature and humidity RH %

Portable textile moisture meter with digital display.

Download sheet

The moisture content is determined by measuring the electrical conductivity of the material, which always is proportional to the content of the moisture.
  • Textile moisture meter DHT-3 with compact housing supplied in leather carrying case with neck strap
  • Portable, battery-operated moisture meter
  • Test report of manufacturer free of charge, calibration report optional available
  • Easy to use textile moisture meter DHT-3 for many applications and quick measurements

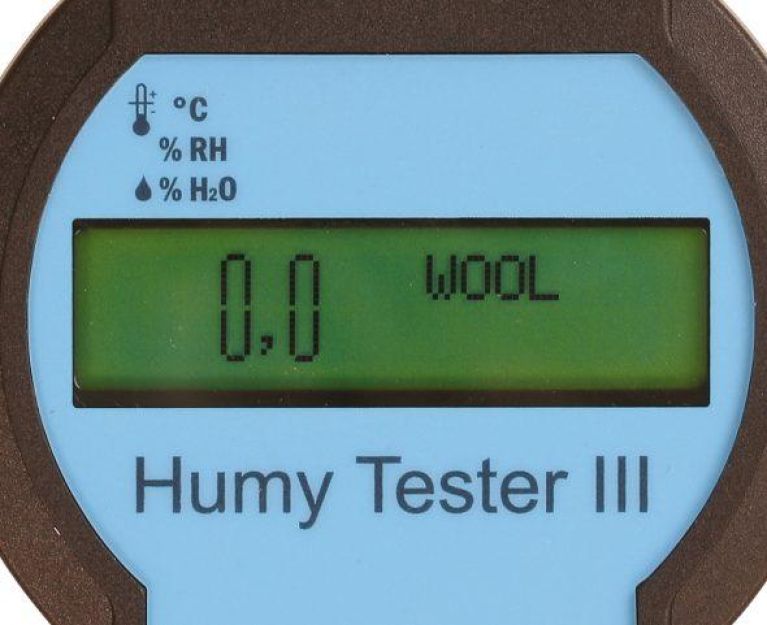

  • Digital display for direct moisture percentage reading of 10 materials (wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester) and 10 often used material mixtures.

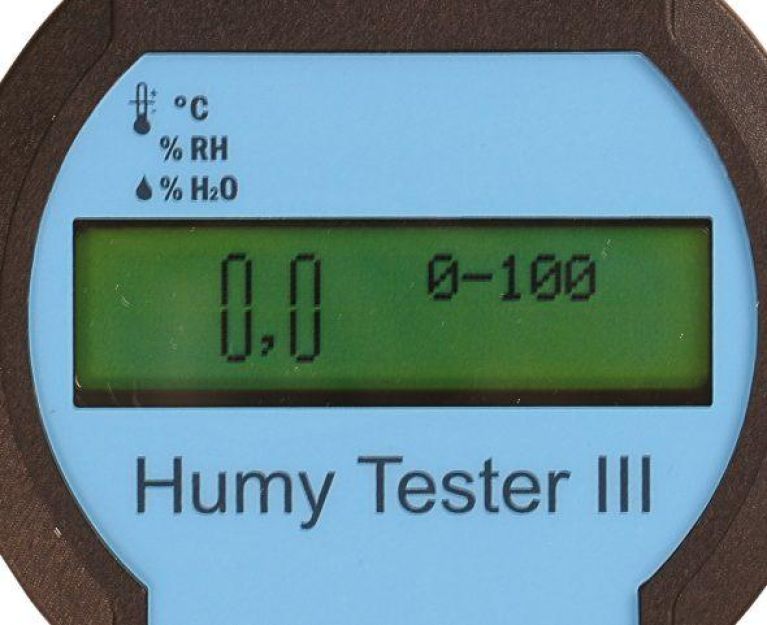

  • Scale with 0 – 100 for non stored materials; with the help of supplies comparison tables the moisture of additional 20 materials can be determined
  • A wide choice of needles and roller electrodes for many applications are available
  • Easy material selection using 2 push buttons
  • Optional the room temperature °C and humidity RH % can be displayed using a special probe
  • Textile moisture meter DHT-3 is microprocessor controlled.
  • Easy material selection using 2 push buttons
  • Room temperature °C and humidity RH % can be displayed using a special probe (optional accessory)High accuracy and reproducibility
Application:
Residual moisture:
Room temperature:
RH %:		Direct reading:
wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester, 50 PES/50 Zw, 50 PES/50 PAC, 50 PES/50 Bw,
67 PES/33 Bw, 70 PES/30 Zw, 70 PES/30 Wo, 67 PAC/33 Bw, 70 PAC/30 Wo, 60 Bw/40 PES, 50 Wo/50 Zw
Indirect reading:
0 – 100 scale and 20 conversion sheets for different materials
-30 to 70 °C (optional)

5 to 95 % RH (optional)

DisplayLCD, resolution 0.1
Accuracy±1 % full scale
Reproducibility±0,3 %
Power supply:Battery 9 V E Block, low battery signal
Auto Power off:After 2 min of non-use
Weight net (gross):Approx. 258 g (1650 g)
Dimensions:200 x 95 x 40 mm (LxWxH)
