Moisture measuring system AD22-CMS22
Moisture measuring system for wooden chips, wooden pellets, sawdust, ...
AD22 Display and controlling unit for different sensors
CMS22 rod sensor for wooden chips, wood pellets, saw dust, grain and other granulates

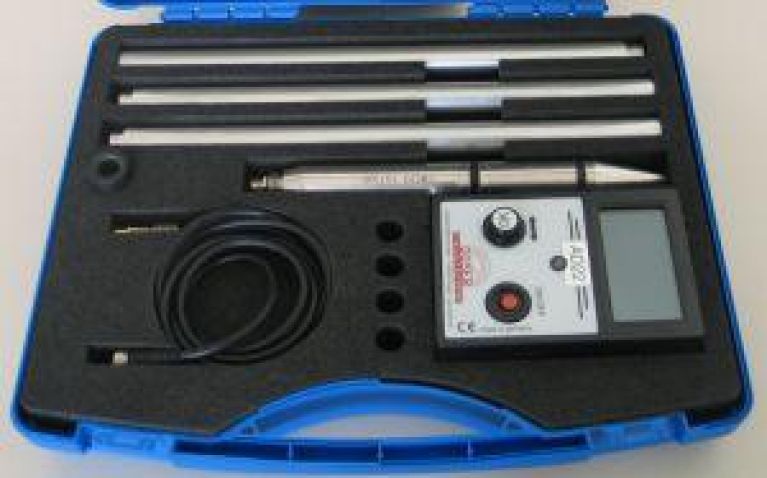

AD22-CMS22 Set:
- display unit AD22 and CMS22 Sensor, inclusive 3 extension pipes Ø18 x 290mm
- delivered in a stable plastic case
- fixed unchangable calibration curves for different materials are programmed
- additional up to 10 different customer specific calibration curves can be stored
Property: Moisture measurement
- measuring range: 0 - 100% (adjustable)
- resolution: 0,1%
- measuring range: 1 - 10 measurements per second (adjustable)
- storage: 10 groups with each 100 measurement values
- dimmension: 125 x 85 x 45 mm
- weight: approx. 240 g
- interface: USB
- software: DOSOFT
- batteries: mignon alkaline batteries (AA), 2 pieces
- dimmension: Ø22 x 200 mm (adjustable length through opnional extensions pipes)
- measuring range: approx. 10 cm around the Sensor
- weight: approx. 250 g
- measuring principle: capazitiv
- output signal: 0 - 5 V
